Description

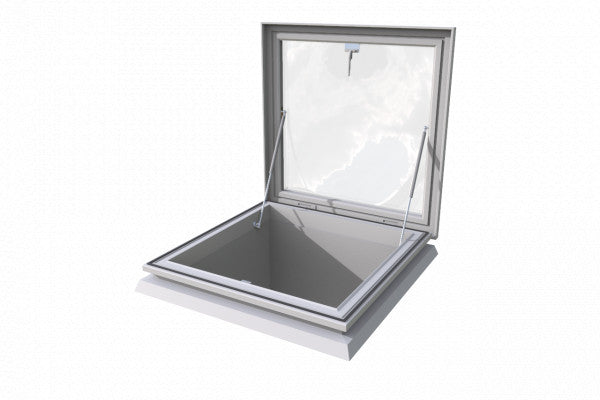

This durable and effective roof access hatch has a 100mm high vertical white PVC DF kerb, which allows it to be fitted directly to an existing upstand. It comes with a low-profile dome in a choice of finishes, and opens to between 70-83 degrees (size-dependent) with gas-assisted struts, providing easy and safe roof access. Please note, the sizes lis

  • Choice of skin types including triple and double skin
  • Direct fit to builders 75mm wide timber kerb
  • Available in multiple sizes
  • 70-83° opening with gas assisted struts

The above unit is supplied with a 100mm white PVC DF kerb to allow the unit to fit directly to a recommended 75mm wide builders kerb. The sizes above are external weathered kerb sizes, clear-light size will be less 150mm.

Related Categories: Access Hatches
Delivery Information

Delivery will be approximately 3 - 5 working days except the below sizes which will be approximately 7 - 10 working days

750 x 1200mm
900 x 1050mm
1050 x 1200mm
1350 x 750mm
1300 x 900mm
1500 x 750mm
1500 x 900mm
1650 x 750mm
1650 x 900mm
1650 x 1050mm
1800 x 900mm
Measurement Information

Units designed to fit to a builders timber kerb.  Dimensions above are the overall weathered kerb size.

Acceptable tolerance:
Opening / vented domes = dome size +40/-20mm

Delivery information
Technical Information

Manufactured from white uPVC and clear or diffused polycarbonate which offers:

- UV protected polycarbonate for all skins.

- Unit hinged on the long dimension.

- 100mm high Vertical White PVC DF kerb fot fitting direct to builders kerb

- Security fixings (supplied) provide a high level of resistance to forced entry.

- Impact tested under current BS EN 1873 to pass classification of SB 1200.

- Complies with BS 476 and BS EN 13501-1 fire ratings.

- Double skin U value between 1.54 and 2.09 W/m²;K

- Triple skin U value between 1.25 and 1.51 W/m²;K

- All pictures/drawings are for illustration purpose only. Actual product may very due to product enhancement.

- Please click for cleaning & maintenance instructions

For full technical information please click here
Installation Information

For Installation details please click here

For internal plasterboard detail please click here
Warranty

Rooflights & Skylights polycarbonate domes are manufactured from enhanced polycarbonate that will not show excessive changes in colour or loss of light transmission, nor will they break due to loss of impact strength, due to weathering, within 10 years from the date of sale.

Please click here to read our full Terms & Conditions of Sale.

Mardome Trade Dome Access Hatch to Builders Kerb

£540.91 INC. VAT
£450.76EXC. VAT
