Description

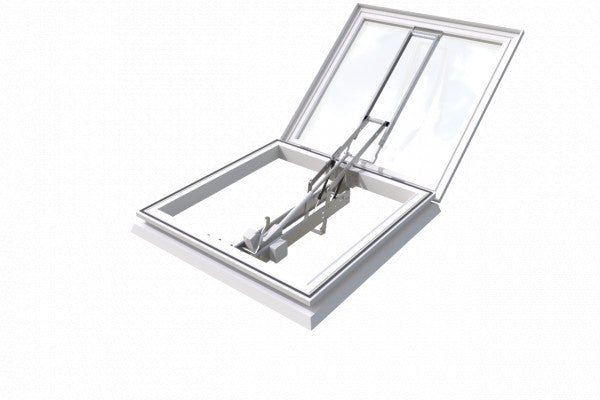

Polycarbonate Automatic Opening Vent rooflight for smoke ventilation
  • Available in a wide variety of sizes Standard sizes for fast lead times
  • 100mm high PVC DF Kerb for fitting to a builders timber kerb
  • Fully certified in accordance to BS EN 12101-2
  • Optional wind deflectors available for improved aerodynamic performance
Delivery Information

Delivery to mainland UK only in approximately 7-10 working days

Measurement Information
Delivery information
Technical Information

Fire rating - achieves Class B-s1, d0 to BS EN 13501:Part 1 and deemed BROOF(t4) to BS EN 13501: Part 5 by Building Regulation

Inclusive of wind deflectors where applicable to comply with regulations

Complete with a Part L compliant polycarbonate triple skin for a high thermal performance & resistance to condensation

Class B non fragility to ACR[M]001

The polycarbonate skin lid with an impact resistance to EN1873 1200 joules and Class B non-fragility in accordance with ACR[M]001

Opens to 140° in less than 60 seconds complying  the requirements of the new Smoke Vent Standard BS EN12101-2

Fire switch maximum of 8 per control panel

Fireman's priority switch maximum of 1 per control panel

Smoke detector maximum of 22 per control panel

5amp control panel can power one smoke vent unit

8amp control panel can power up to two smoke vent units and is required for the units below:

-1350mm x 1350mm unit

-1500mm x 1500mm unit

Please note offset motor position not available with wind deflectors


For the datasheet, please Click here

Delivery information
Installation Information

For Installation details please click here

Warranty

Mardome Trade Smoke Vent to suit Builders Kerb

£1,476.21 INC. VAT
£1,230.18EXC. VAT

NEED A CUSTOM SIZE?

Custom Sizes & Options Available Bespoke quotes available on request
